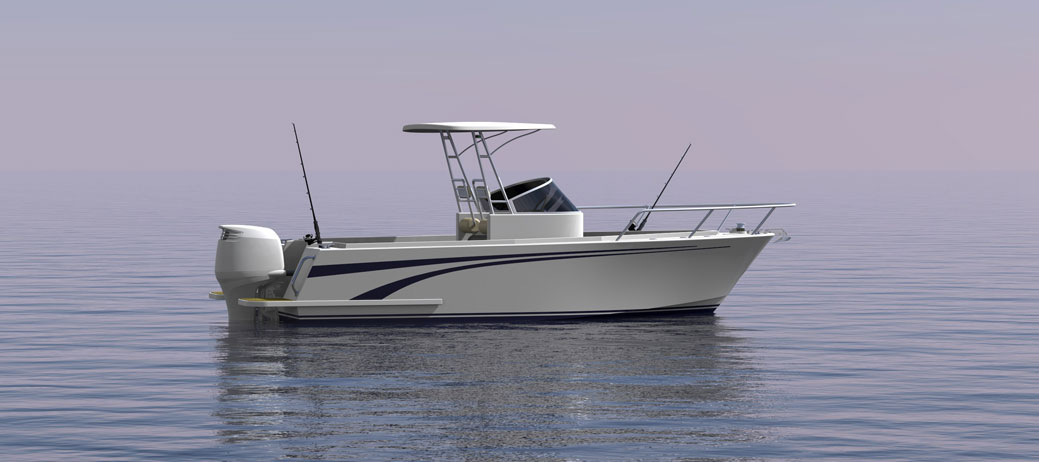

GY16.7' CC - 5.0m Centre Console Fishing Boat
The 5.0m Centre Console Fishing Boat:
- can be classified for CE approval category B offshore
- the cockpit is self draining
- can be build from marine grade aluminium alloy
- all surfaces are developable for easier roll over the frames
- the hard top can be fix or removable for reducing the drag during the road transportation, or for less stowed height if require for storage.

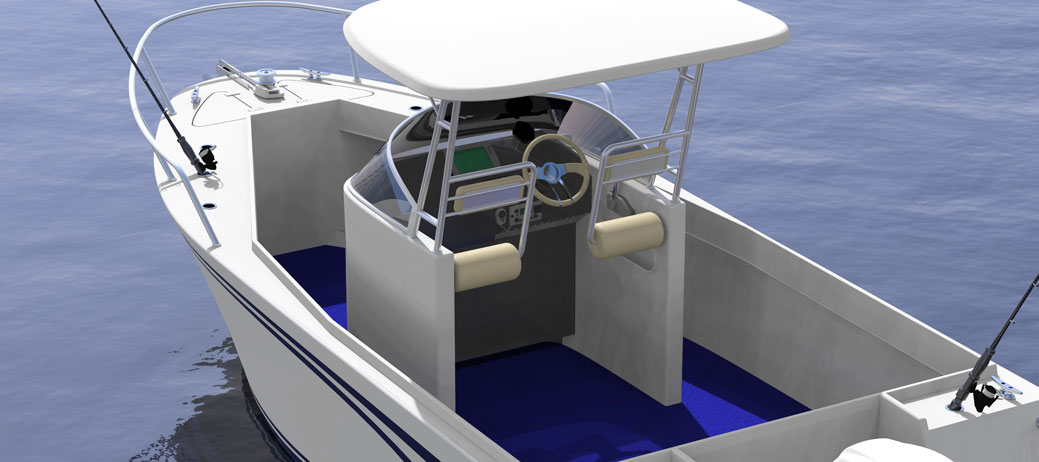

- to make the helm area enclosed clears can be fitted between the windshield and the hard top.
Some of the other features – electrical windlass, electrical deck shower, removable ski pole and swim ladder
Specifications
| Overall Length | 5.70 m (including the handrail and swim platforms) |
| Hull Length | 5.03m |
| Length (Waterline) | 4.38m |
| Hull Beam | 2.15m |
| Internal Beam | 1.96m |
| Draught (Engine up) | 0.25m |
| Displacement (Approximately) | 800kg |
| Deadrise (Transom) | 18 degree |
| Weight to Immerse | 1.0cm 65.3 kgf/cm |
| Engine | Outboard 75-115hp |
| Fuel | 120L |
